EKEPC2-C/S EV Charging Station Controller
EKEPC2-C/S EV Charging Station Controller
EKEPC2-C/S EV Charging Station Controller
EKEPC2-C/S EV Charging Station Controller
Model: EKEPCB2-C/S
Mode: Mode 3 charging
Operating Voltage: AC230V±10%,50Hz
Outputthe PWM Signal: Max:32A,10A/16A/20A/25A/32A adjustable
Max:16A,6A/8A/13A/16A
Max:63A(customized)
Contact Now
Technical Data

BRIEF DESCRIPTION

EKEPC2-C/S is using for AC EV Charging Station complies with IEC61851 or SAEJ1772 standard and DIN EN6075 installation requirement. The output of the relay is used to connect to the AC contactor that switches on/off the load,Max current can up to 63A.
The EKEPC2 controller is Modbus-RTU protocol with RS485 communication,which can communication with controller read or write commands for charger,the controller addtional functions including :non-contact IC card connection module(residual current monitoring unit),DLB management,LCD dislay,KWM Meter,Electronic lock,external emergency stop pushbutton,etc.These function must be NOTED when ordering

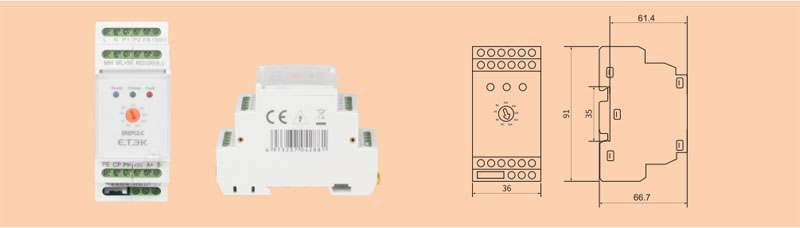

Overall and Installation Dimension ( mm )
